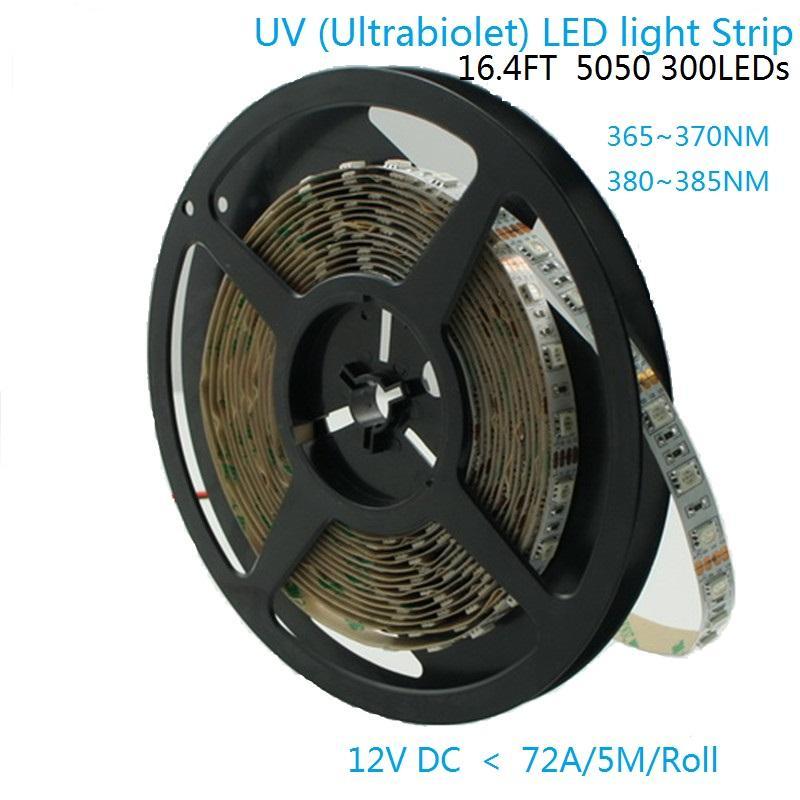

365nm & 380nm SMD5050-300 12V 6A 72W UV (Ultraviolet) LED Strip Light Flex White PCB Ideal for UV Curing, Currency Validation, Medical Field
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄
Wavelength Options: 365nm-370nm and 380nm-385nm
Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof
365nm-370nm & 380nm-385nm SMD5050-300 12V DC <72W, 6Amp UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for UV Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Available Lengths and Suggested Power Supply to power (the power supply is not included)
| Length | Wattage (w) | Suggested Power Supply |
| 50cm | 7.2 | 12V, 1.0Amp, 12W |
| 100cm | 14.4 | 12V, 1.5Amp, 18W |
| 200cm | 28.8 | 12V, 3.0Amp, 36W |
| 300cm | 43.2 | 12V, 4.0Amp, 48W |
| 400cm | 57.6 | 12V, 5.0Amp, 60W |
| 500cm | 72 | 12V, 7.0Amp, 84W |
To use bigger power supply than rated power of the strip is to avoid full loaded working, which is better for the lifespan of the Power Supply.
Strip Light Specification for 5 Meter Roll
LED Type: UV SMD5050
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 14.4Watt/Meter
Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 10*1.8
Weight: 0.15kgs per 5meter per roll
Wavelenght: 365nm-370nm, 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
UV LED Lights Application
Wavelength Options: 365nm-370nm and 380nm-385nm
Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
IP Grade avaliable : Non-Waterproof , IP65 Waterproof , IP67 Waterproof , IP68 Waterproof
365nm-370nm & 380nm-385nm SMD5050-300 12V DC <72W, 6Amp UV (Ultraviolet) LED Strip Light Non-Waterproof Flexible White PCB Strip Light Ideal for UV Curing, Currency Validation, Mosquito killer, Fluorescence disclosing and Medical Field
Note: Sold by Different Lengths in 50cm, 100cm, 200cm, 300cm, 400cm, 500cm.
Available Lengths and Suggested Power Supply to power (the power supply is not included)
| Length | Wattage (w) | Suggested Power Supply |
| 50cm | 7.2 | 12V, 1.0Amp, 12W |
| 100cm | 14.4 | 12V, 1.5Amp, 18W |
| 200cm | 28.8 | 12V, 3.0Amp, 36W |
| 300cm | 43.2 | 12V, 4.0Amp, 48W |
| 400cm | 57.6 | 12V, 5.0Amp, 60W |
| 500cm | 72 | 12V, 7.0Amp, 84W |
To use bigger power supply than rated power of the strip is to avoid full loaded working, which is better for the lifespan of the Power Supply.
Strip Light Specification for 5 Meter Roll
LED Type: UV SMD5050
LED QTY.: 60LED/Meter
Input Voltage: 12V DC
Wattage (max): 14.4Watt/Meter
Cuttable: Every 3LED per 2'' can be cut
Size(W*H/mm): 10*1.8
Weight: 0.15kgs per 5meter per roll
Wavelenght: 365nm-370nm, 380nm-385nm
PCB Background color: White
PCB Backing: Double-sided Adhesive backing
Beam Angle: 120°
Dimming: PWM dimmable(more information please refer to different Dimmer applications)
Waterproof Type: Non-waterproof(indoor use)
Pre-wiring: 20cm Red/Black Lead wire at one end of the strip
UV LED Lights Application
