12VDC Non-waterproof SMD5050-30-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 30LEDs 7.2W per piece LED Light Bar
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄

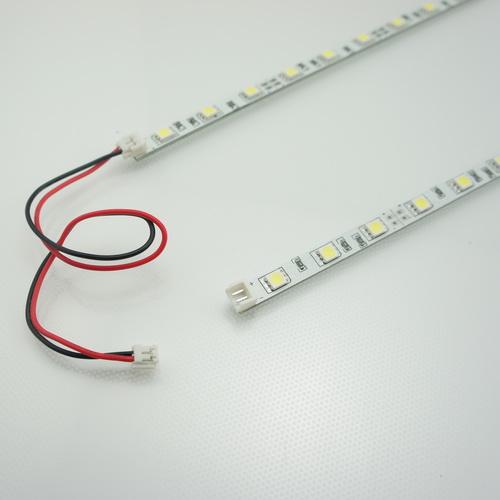

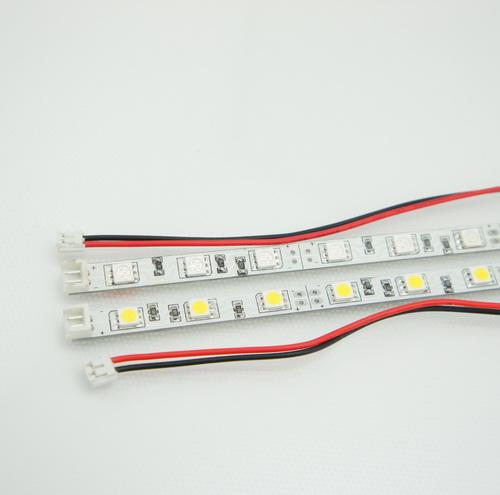

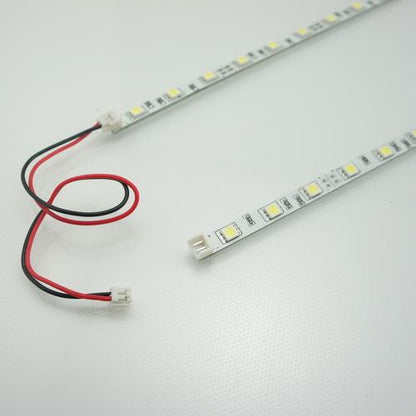

LEDLIGHTSWORLD infrared 850nm/940nm LED Linear Rigid Light Strip.This popular LED light strip in 570mm with 30LED 5050 per peice. It's Non-weatherproof with adhesive backing, can be cut into 3-LED segments(2.22inch long). 12VDC operation. Dimmable with compatible LED dimmers
| Technical Specification |
| Wattage | 7.2W/pc | Voltage | 12V DC |
| Beam Angle | 120° | Dimming | Yes |
| LED Type | SMD5050 | Strip Section | 3LED per 2.2inch |
| WxH | 8x4(mm) | LED QTY.: | 30LED/pc |
| Length Available | 570mm (customized length available) | Available Color | 850nm and940nm |
| Protection Grade | Non-waterproof | PCB Background | White |
| Other Features |
| Item | 12VDC Non-waterproof SMD5050-30-IR Infrared (850nm/940nm) LED Linear Rigid Strip, 30LEDs 7.2W per piece |
| Weight | 50g/pc |
| PCB Backing | Double-sided tape is attached at the backing of the light bar |
| Accesssories | 1pc 2pin prong connector, end to end connection jumper |
| Lead | V+ and V-, polarities sensetive |
Applications
*For surveillance or security
*For the multitouch display
*For Night Version Light
Features
*Can be cut into 3-LED segments
*Adhesive backing
*12VDC Operation
*Dimmable - See our Dimmer Selection
Safty Tips
*Always disconnect power supply before cutting/connecting LED Light Rigid Strips.
*Do not crimp or bend the Rigid Strips.
*Do not connect LED Rigid Strips. directly to 120V AC power.
*Apply power to test LED Rigid Strips before mounting.
Installation Planning
Direct Powered by Transformer Run to AC Wall Outlet, On/Off controlled by a Wall Switch
Light strip On/Off/Brightness is controlled by Dimmer (Wireless or Hardwire Type available)
