DC 12V-24V 6Amp Rotary Switch Inline Dimmer
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄
DC 12V-24V 6Amp Rotary Switch Inline Dimmer
Dimmer is a controller that it can adjust brightness, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.
Technical parameters
*Working temperature: -20-60℃
*Supply voltage: 12V-24V DC
*Output: 1 channel

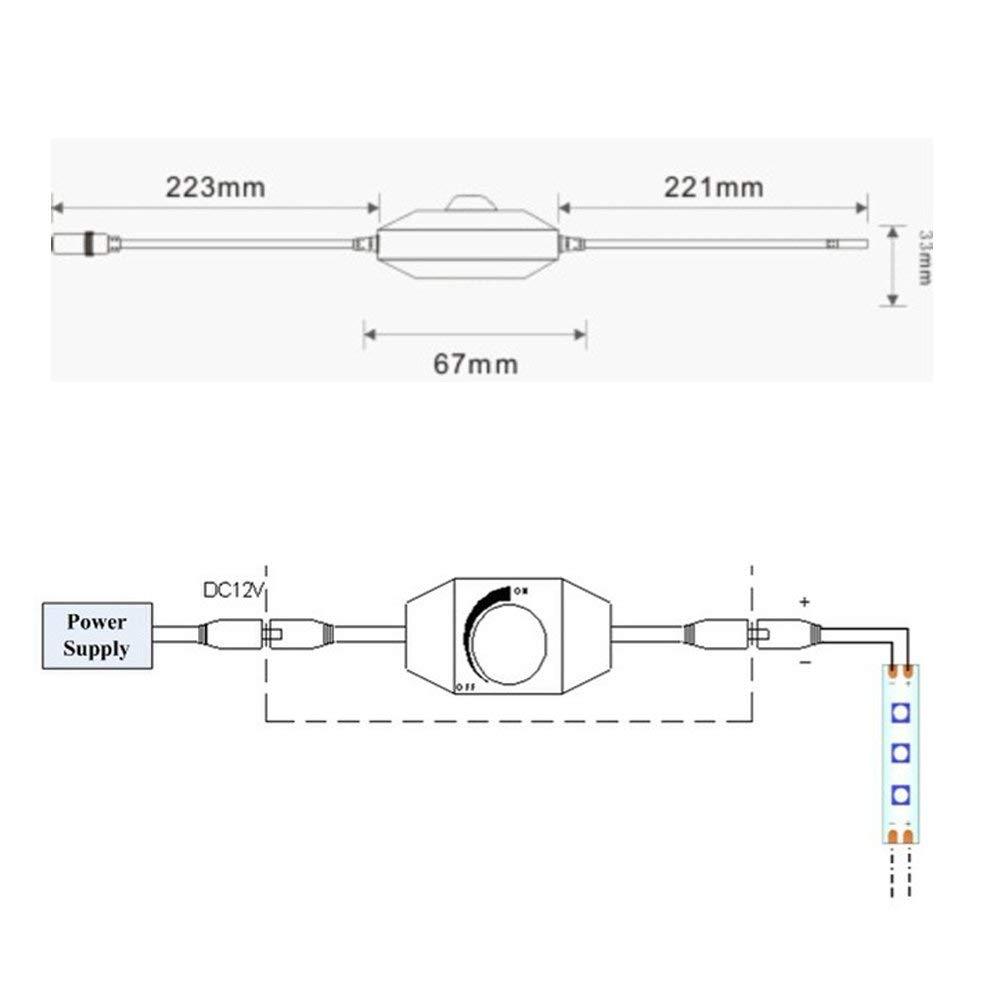

*External dimension: L67xW33H33 (mm)
*Net weight: 30g
*Gross weight:55g
*Static power consumption: <1W
*Output current: <6A
*Power output: 72W @12V; 144W @24V
*Input interface: DC5.5x2.1mm Female
*Output interface: DC5.5x2.1 Male
Direction for use

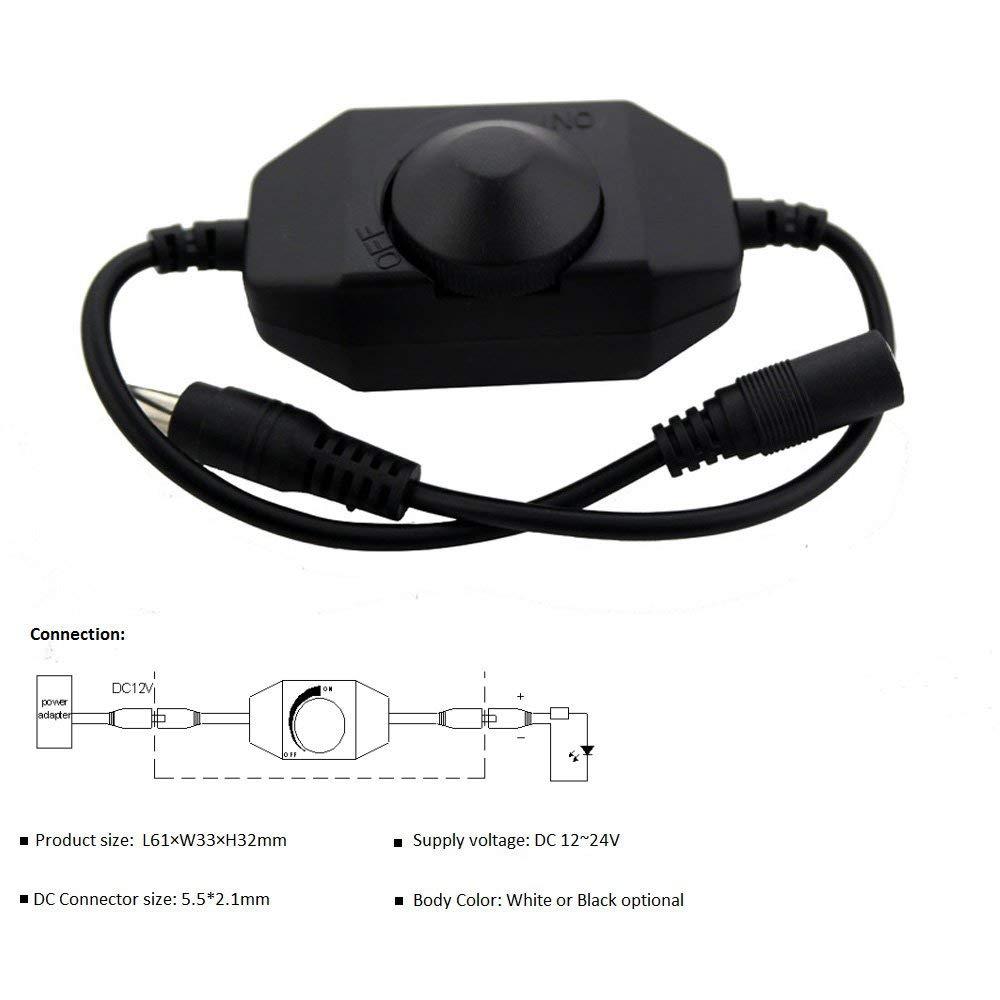

1. Connect the load wire at first, following by the power wire;

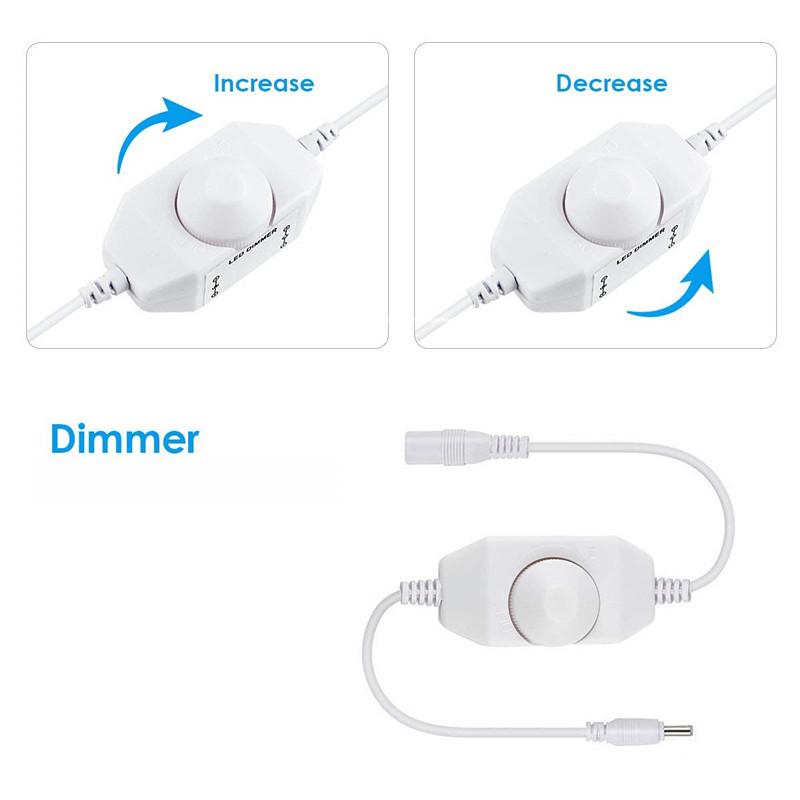

2. Adopt rotary button,its function as follows:
Rotate button to the right,brightness will be brighter,when you rotate it to the far right,the
brightness is greatest. Rotate button to the left,brightness will be darker,when you rotate it to the far left,the light will be turned off.
