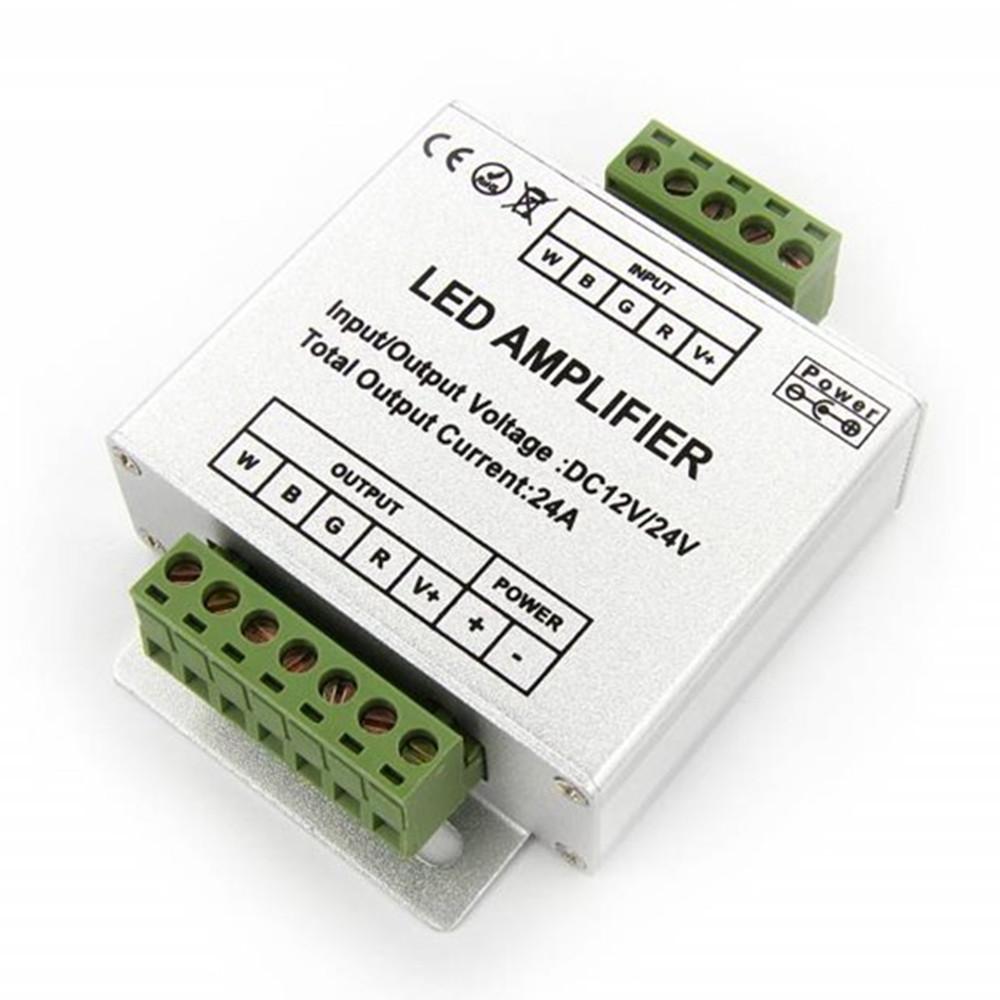

4 Channel RGBW Amplifier for 12V or 24V RGBW / RGBWW or RGB Color LED Flexible Strip Lights
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄
This 4channel Amplifier is able to use for RGBW, RGB, Dual White and single color 12V/24VDC LED lights. With 6Amp/Channel, its max load is 24Amp. It's usually used with controller together, to enlarge the signal, to make one controller can control more LED Lights that over its rated load.
Specification
| Operating Voltage | DC12V, 24V |
| Product Size | L81*W64*H24 (mm) |
| Net Weight | 90g |
| Output Channel | 4 channel (R,G,B,W) |
| Connection Way | Common Anode |
| Output Current | 6Amp/Cannel |
| Output Wattage | 12V:<288W, 24V:<576W |
| Packing | 100pcs per carton |
| Carton Size | L385*W375*H250 (mm) |
| Application | Enlarge signal, work for RGBW, RGB, Dual White and Single Color LED strips or bars |
How to Run Several RGBW Strips by One Single RGBW Controller by using Amplifiers
This 4channel Amplifier is able to use for RGBW, RGB, Dual White and single color 12V/24VDC LED lights. With 6Amp/Channel, its max load is 24Amp. It's usually used with controller together, to enlarge the signal, to make one controller can control more LED Lights that over its rated load.
Specification
| Operating Voltage | DC12V, 24V |
| Product Size | L81*W64*H24 (mm) |
| Net Weight | 90g |
| Output Channel | 4 channel (R,G,B,W) |
| Connection Way | Common Anode |
| Output Current | 6Amp/Cannel |
| Output Wattage | 12V:<288W, 24V:<576W |
| Packing | 100pcs per carton |
| Carton Size | L385*W375*H250 (mm) |
| Application | Enlarge signal, work for RGBW, RGB, Dual White and Single Color LED strips or bars |
