12VDC TM1914 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 60LEDs /Mtr
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄

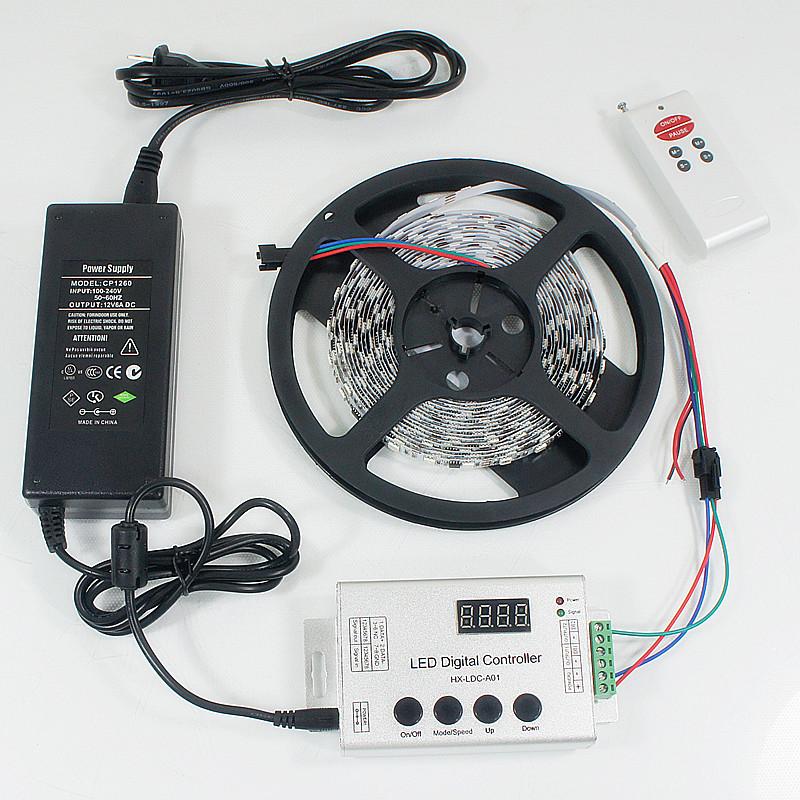

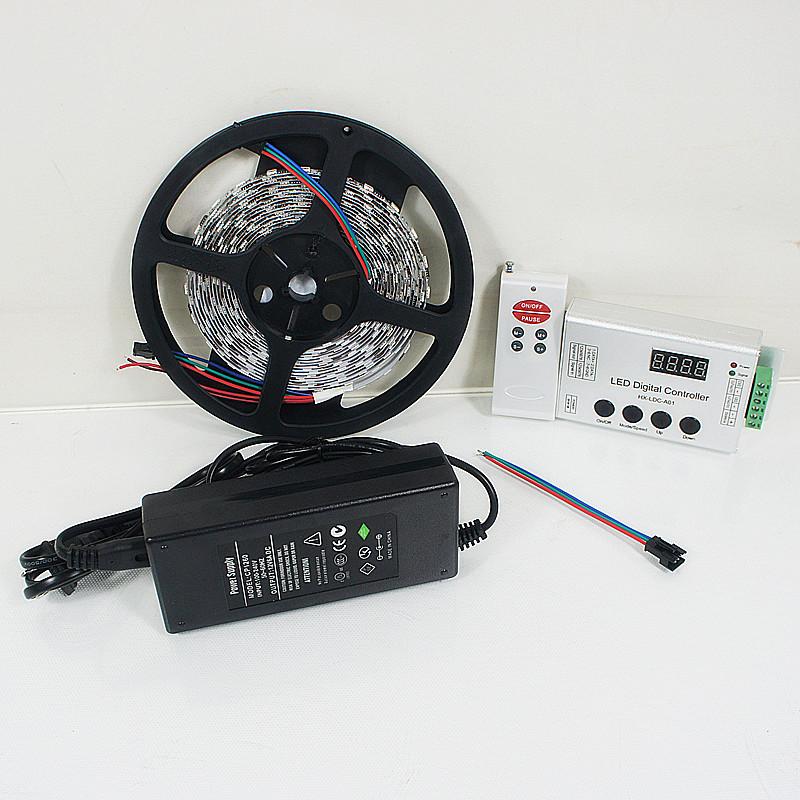

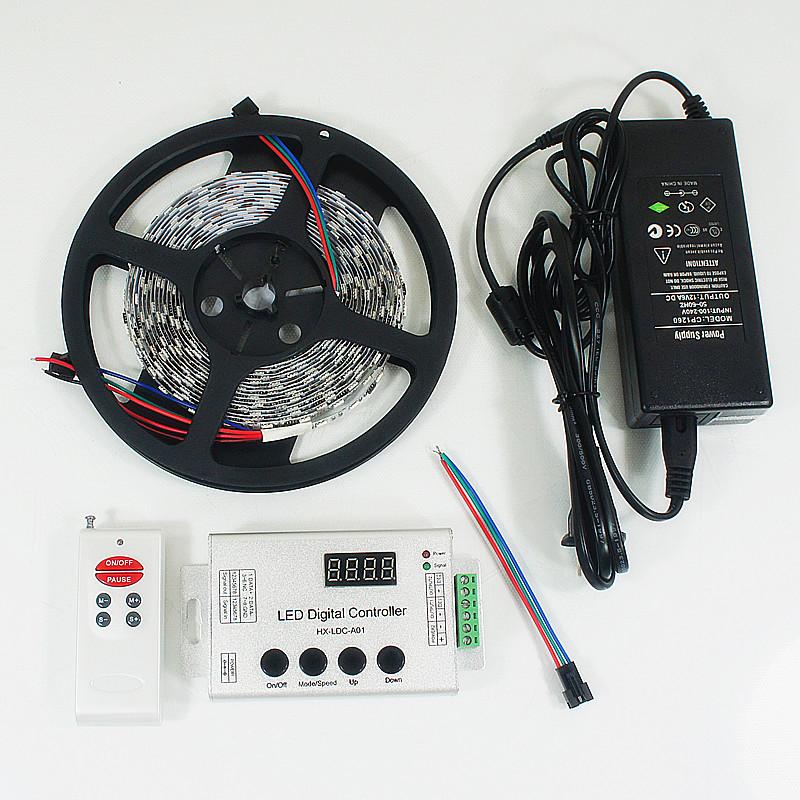

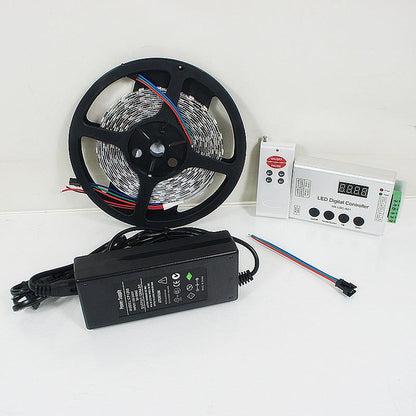

This 5050 60LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x TM1914 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 60LEDs
2. 1 x DC12V RF Dream Color RGB LED Strip Controller
3. 1 x DC12V 8Amp Power supply
4. 1 x 3pin SM Connector
The strip in this kit is the DC 12V TM1914 Breakpoint Continuingly RGB Color Changing Addressable LED Strip Light 5050 RGB 16.4 Feet (500cm) 60LED/Meter
Power: 12VDC
Wattage: 18W/Mtr
LED QTY.: 60LED/Mtr
IC QTY.: 10pcs/Mtr
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, IP65 Waterproof ,IP67 Waterproof
Packing:5Mtr/roll
Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection
Specification of the 96Watt Transformer in the Kit:
The Input Voltage: 100-240VAC
Output voltage: 12V
Output current: 8A
Dimension(mm): 170*64*40 (mm)
Accessory: it comes with power plug suit to different country (Europe plug, US plug Italy Plug and so on).

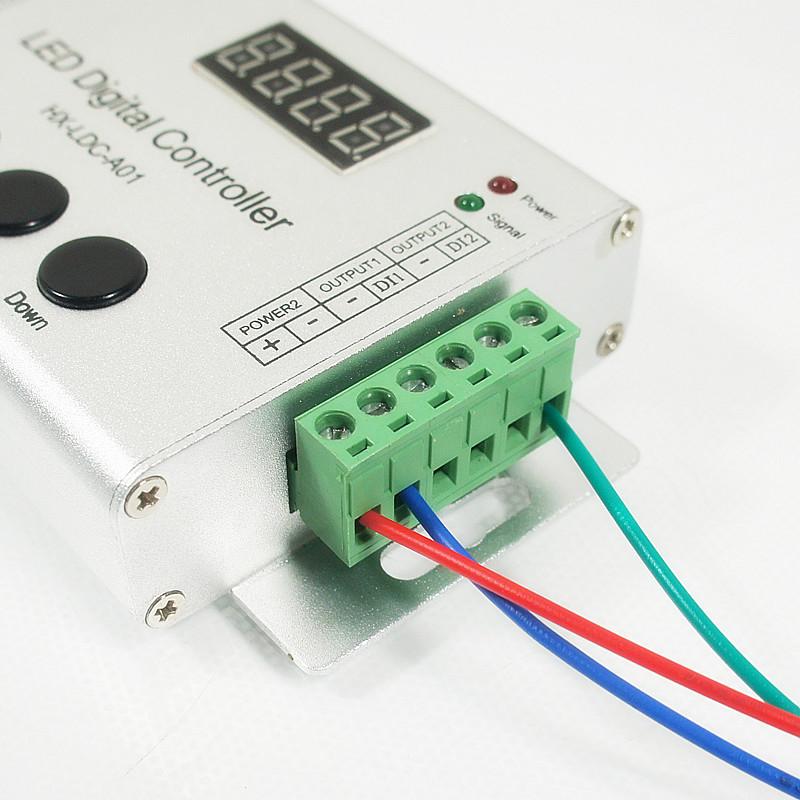

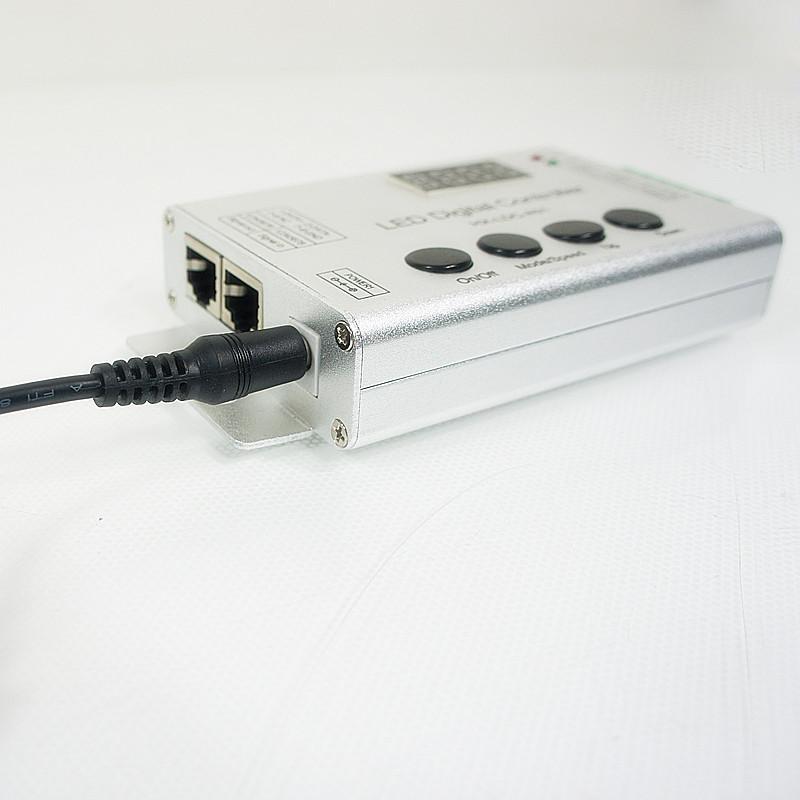

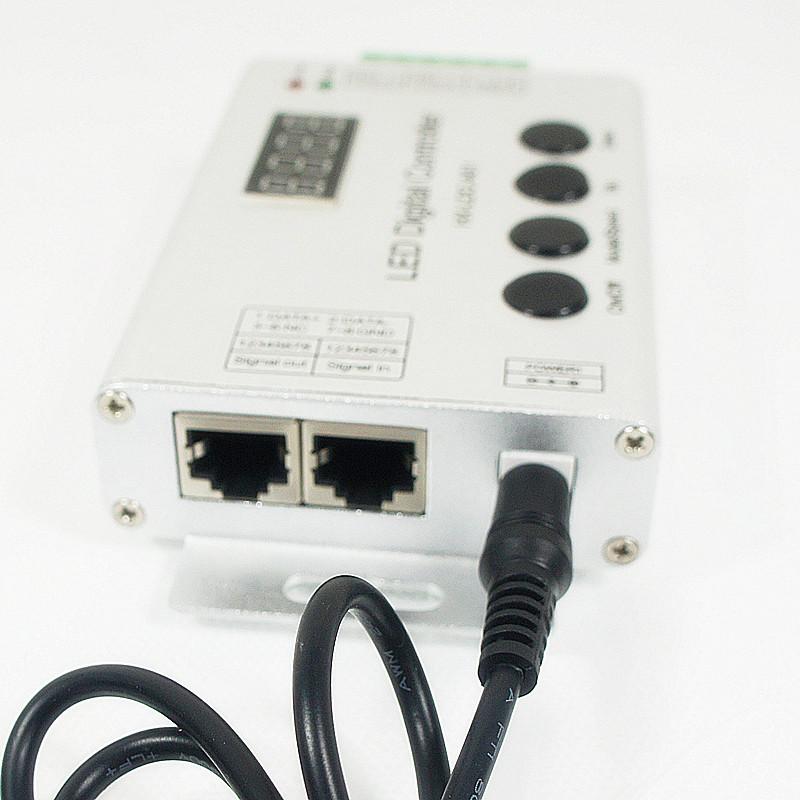

The RF Dream Color RGB Controller is the Dream Color Digital/SPI RF LED Controller - 5-24VDC / 2048 Pixels.
On/off：It can open or close output.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Standard color changes as follows:
This 5050 60LED IC Controlled Dream Color RGB LED Strip Kit includes the following items:
1. 1 x TM1914 IC Controlled Dream Color 5050 RGB Pixel LED Strip Kit 5 meters with 60LEDs
2. 1 x DC12V RF Dream Color RGB LED Strip Controller
3. 1 x DC12V 8Amp Power supply
4. 1 x 3pin SM Connector
The strip in this kit is the DC 12V TM1914 Breakpoint Continuingly RGB Color Changing Addressable LED Strip Light 5050 RGB 16.4 Feet (500cm) 60LED/Meter
Power: 12VDC
Wattage: 18W/Mtr
LED QTY.: 60LED/Mtr
IC QTY.: 10pcs/Mtr
Beam Angle: 120°
PCB finish color : White
Protection grade option: Non-waterproof, IP65 Waterproof ,IP67 Waterproof
Packing:5Mtr/roll
Connector: 3-pin SM connector for strip extention and 2color wire for power supply connection
Specification of the 96Watt Transformer in the Kit:
The Input Voltage: 100-240VAC
Output voltage: 12V
Output current: 8A
Dimension(mm): 170*64*40 (mm)
Accessory: it comes with power plug suit to different country (Europe plug, US plug Italy Plug and so on).
The RF Dream Color RGB Controller is the Dream Color Digital/SPI RF LED Controller - 5-24VDC / 2048 Pixels.
On/off：It can open or close output.
Mode/Speed ：Mode adjustment / speed adjustment function switch (The first LED displays H for model adjustment, shows S for the speed adjustment.)
UP：Mode+/Speed+ button. When in mode regulator function, it is for “Mode+”. When in speed regulator function, it is for “Speed+”.
DOWN：Mode-/Speed- button. When in mode regulator function, it is for “Mode-”. When in speed regulator function, it is for “Speed-”.
Standard color changes as follows:
