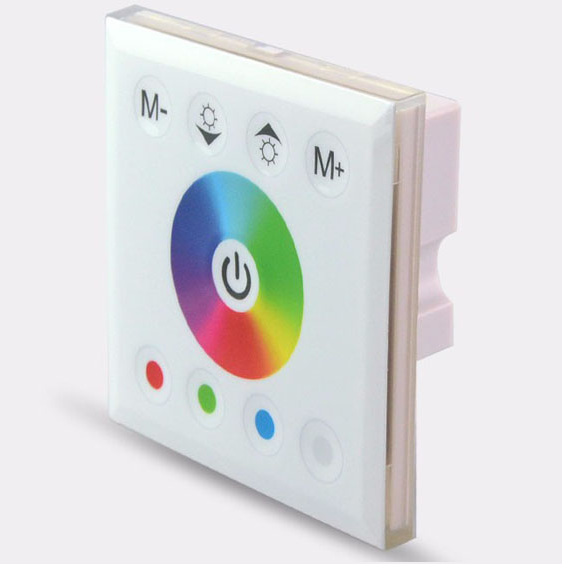

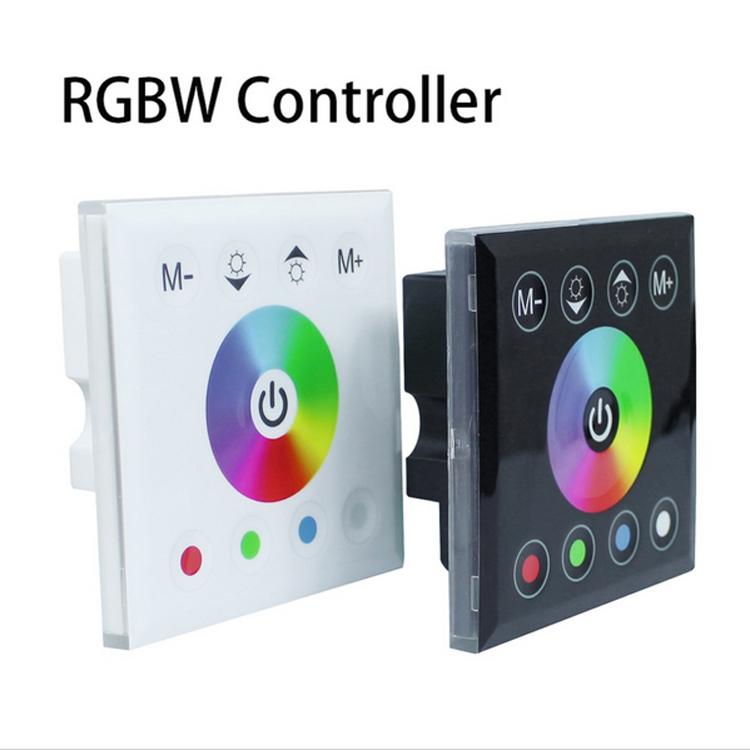

12V-24V DC Wall Panel Touchable Color Ring LED Controller for RGBW & RGBWW Color Changing LED Strips
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄
12V-24V DC Wall Panel Touchable Color Ring LED Controller for RGBW & RGBWW Color Changing LED Strips
Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24V
● output: 4 channels
● connection mode: common anode
● external dimension: L86 Χ W86 Χ H36 mm
● packing size: L115Χ W110 Χ H56 mm
● net weight: 128g
● gross weight: 187g
● static power consumption: <1W
● output power: 12V<192W,24V<384W
6 Modes
| # | Mode | Remark |
| 1 | RGB 3color jump | Speed adjustable |
| 2 | RGB 3color strobe | Speed adjustable |
| 3 | RGB 3color flash | Speed adjustable |
| 4 | 7color jump | Speed adjustable |
| 5 | 7color strobe | Speed adjustable |
| 6 | 7color flash | Speed adjustable |
Dimension

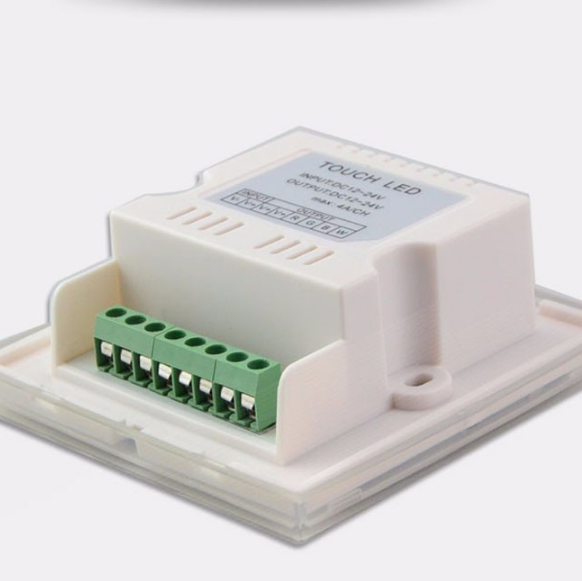

Wiring
Installation Guide
1. Use tool to take apart the front panel and back base of the wall panel LED controller
2. Get the wires be conneted well between the Back Base and the strips & power source
3. Recessed the Back Base into wall and fixed it by screws.
4. Finally press the Front Panel back into the Base Base.
