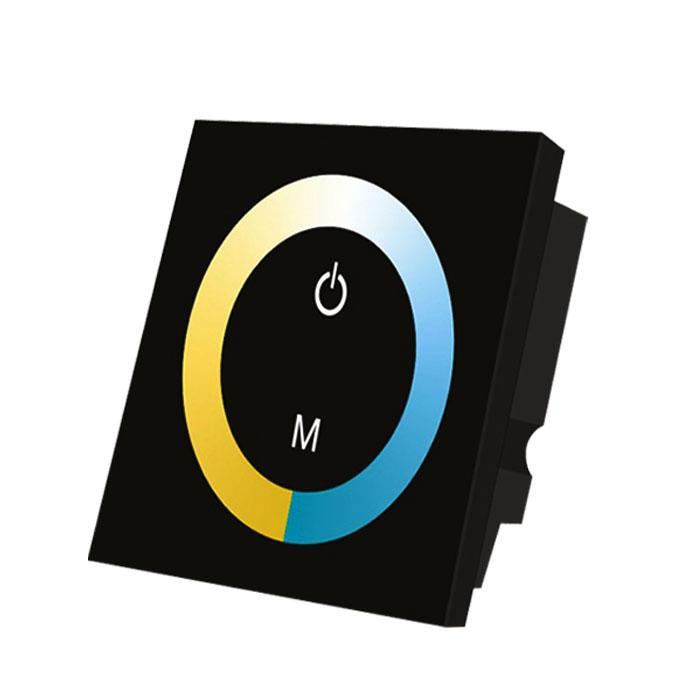

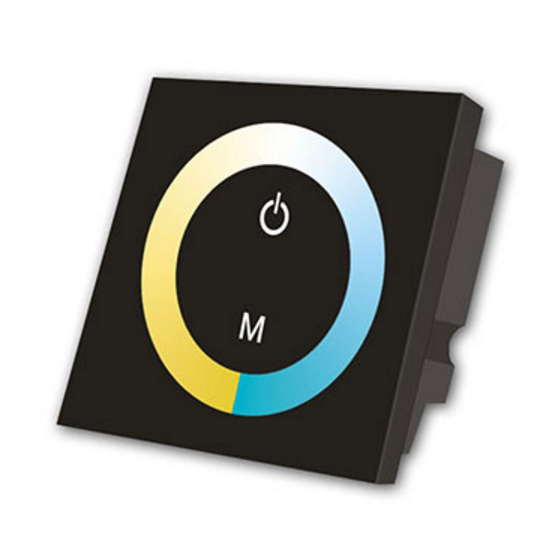

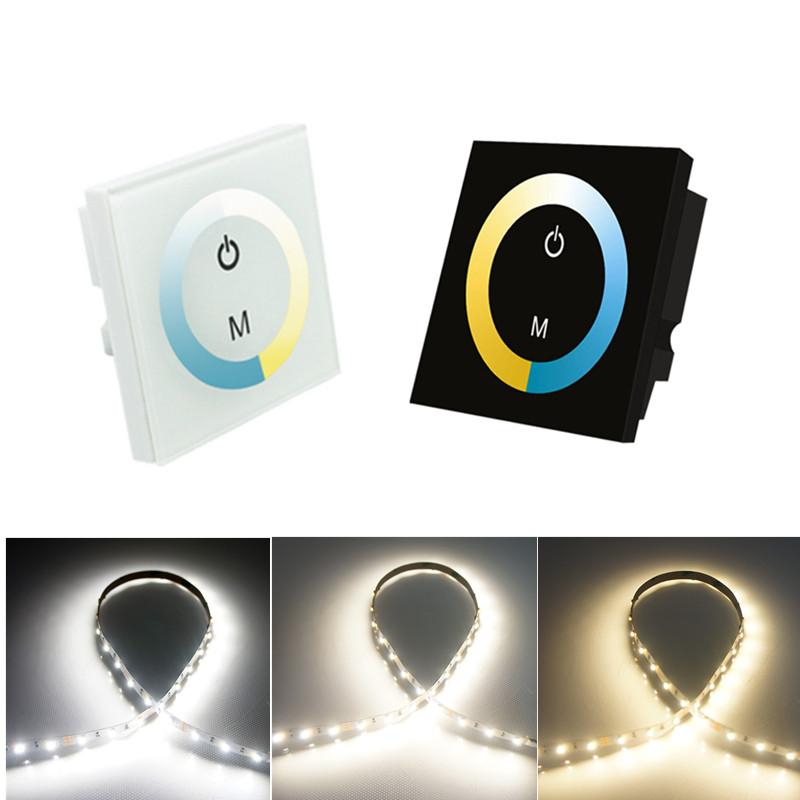

12V-24V DC TM07 Wall Panel Touchable Color Ring LED Controller for Dual White Color Temperature Adjustable LED Strips
Why Customers Choose This
High Brightness
Bright and consistent output for everyday lighting.
Uniform Light
Designed for clean and visually consistent illumination.
Flexible Installation
Flexible construction fits cabinets, shelves and displays.
Cuttable Design
Cut at marked points to suit different installation lengths.
Key Specifications
Product Details
⌄
12V-24V DC TM07 Wall Panel Touchable Color Ring LED Controller for Dual White Color Temperature Adjustable LED Strips
Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC12-24
● output: 2 channels
● connection mode: common anode
● external dimension: L86 Χ W86Χ H36mm
● packing size: L115 Χ W110 Χ H56 mm
● net weight: 130g
● gross weight: 187g
● static power consumption: <1W
● output current: <4A( each channel )
● output power: 12V<96W,24V<192W

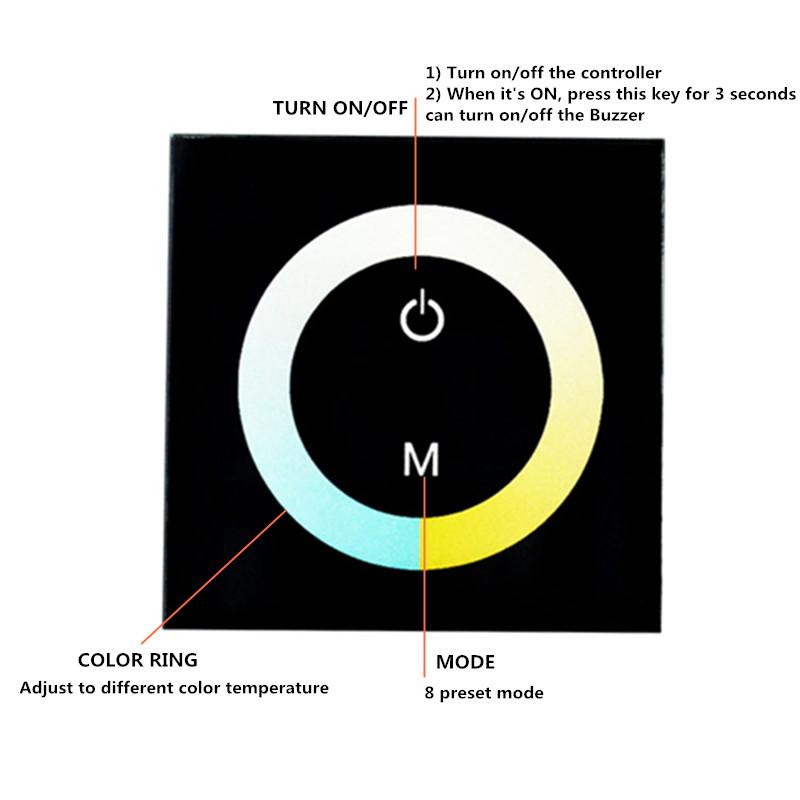

Function
The 8 pre-set mode for M key.
|
# |
Mode |
|
1 |
Warm White 100% |
|
2 |
Warm White 75% |
|
3 |
Warm White 50% |
|
4 |
Warm White 25% |
|
5 |
Pure White 100% |
|
6 |
Pure White 75% |
|
7 |
Pure White 50% |
|
8 |
Pure White 25% |
Wiring Reference
Photo Illustration
Installation Guide
1. Use tool to take apart the front panel and back base of the wall panel LED controller
2. Get the wires be conneted well between the Back Base and the strips & power source
3. Recessed the Back Base into wall and fixed it by screws.
4. Finally press the Front Panel back into the Base Base.
