COB vs SMD LED Strips: What’s the Difference?

COB and SMD are two of the most common LED strip technologies. Both can provide efficient, flexible lighting, but they differ in LED structure, light appearance, heat distribution and typical applications.

Understanding these differences can help you choose the right LED strip for your project.

What Is an SMD LED Strip?

SMD stands for Surface Mounted Device.

SMD LED strips use individual LED chips mounted directly onto a flexible PCB. Depending on the strip design, the LEDs may be spaced closely together or farther apart.

Common SMD LED packages include different chip sizes and configurations, while modern LED strips may also combine multiple color channels in one package.

SMD strips are widely used because they offer:

• A broad range of brightness levels
• Multiple color options
• RGB and RGBW configurations
• Flexible PCB widths
• Many voltage choices
• A wide range of LED densities

They remain a practical option for both decorative and general lighting.

What Is a COB LED Strip?

COB stands for Chip on Board.

Instead of using clearly separated LED packages, COB strips place a large number of small LED chips very close together on the PCB.

These chips are covered by a continuous phosphor layer, which creates a smoother and more uniform line of light.

One of the biggest advantages of COB LED strips is the reduced visibility of individual LED dots.

This makes COB especially suitable for installations where the light source is visible.

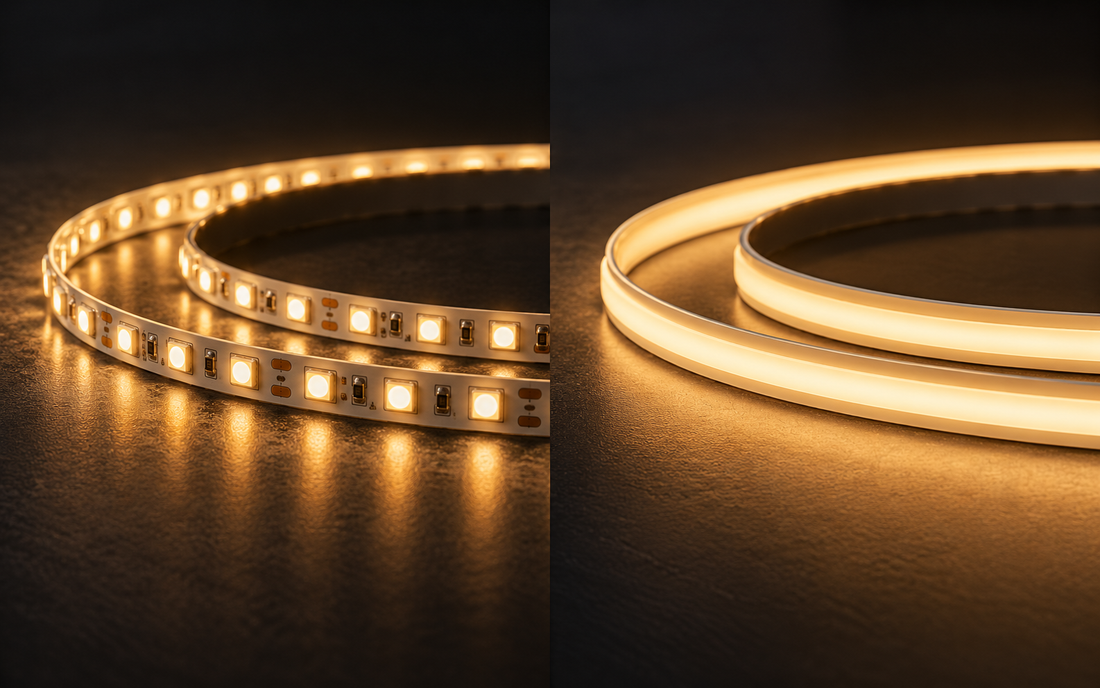

COB vs SMD: Light Appearance

The most noticeable difference is the way the light looks.

SMD LED Strips

Traditional SMD strips may show visible light points, especially when:

• The strip has lower LED density
• The diffuser is shallow
• The strip is mounted close to a reflective surface
• The installation profile is very slim

Using a higher-density SMD strip or a deeper aluminum profile can reduce this effect.

COB LED Strips

COB strips provide a more continuous line of light.

Because the LED chips are placed very close together under a phosphor layer, the light appears smoother and more uniform.

For this reason, COB is often chosen for:

• Under-cabinet lighting
• Shelves
• Display cases
• Furniture
• Linear architectural lighting
• Visible strip installations

COB vs SMD: Brightness

Neither COB nor SMD is automatically brighter in every situation.

Brightness depends on several factors, including:

• LED density
• Power consumption
• LED efficiency
• PCB design
• Voltage
• Heat dissipation

A high-power SMD strip can be brighter than a low-power COB strip, while a high-density COB strip may provide excellent brightness with a smoother appearance.

When comparing products, it is better to compare actual lumen output and wattage instead of judging brightness only by LED type.

COB vs SMD: Heat Distribution

LED strips generate heat during operation.

COB technology uses many small chips distributed closely along the PCB. This can help spread heat more evenly across the strip.

SMD strips also manage heat effectively when they use:

• Good-quality copper PCB
• Proper PCB thickness
• Suitable power levels
• Aluminum channels when required

For higher-power installations, an aluminum profile can help improve heat dissipation and extend the life of both COB and SMD strips.

COB vs SMD: Flexibility

Both COB and SMD LED strips are available on flexible PCBs.

However, the actual flexibility depends more on:

• PCB width
• PCB thickness
• LED construction
• Waterproof coating
• Strip design

Standard flexible strips are designed to bend along one axis.

For very tight curves, corners or complex shapes, always check the minimum bending radius before installation.

COB vs SMD: Color Options

SMD LED strips are available in a very wide range of configurations.

Common options include:

• Single-color white
• Red
• Blue
• Green
• RGB
• RGBW
• RGBWW
• RGBIC

COB strips are also available in increasingly diverse configurations, including:

• Warm white
• Neutral white
• Cool white
• Single colors
• Tunable white
• RGB
• RGBW

If you require advanced multi-color effects, check the controller and strip compatibility before purchasing.

COB vs SMD: Visible LED Dots

This is one of the most important differences.

SMD

Depending on LED density and installation depth, individual LED points may be visible.

COB

COB strips are designed to create a more continuous light line with fewer visible dots.

If the strip is installed where customers can directly see the light source, COB is often the better choice.

COB vs SMD: Cutting and Installation

Both types can normally be cut at marked cutting points.

The exact cutting interval depends on the strip design and voltage.

Before cutting, always check:

• Cutting marks
• Voltage
• Polarity
• PCB width
• Connector compatibility

COB strips may require connectors specifically designed for COB PCB layouts.

Standard SMD connectors are not always compatible.

Which Is Better for Aluminum Channels?

Both COB and SMD strips can be installed in aluminum channels.

However, COB works especially well with:

• Slim profiles
• Shallow diffusers
• Visible linear lighting

Because COB already produces a smooth light line, it can achieve a clean appearance even in compact profiles.

SMD strips may benefit from deeper profiles or diffusers when reducing visible LED dots is important.

Which Is Better for Under-Cabinet Lighting?

Both can work well.

Choose COB when you want:

• Smooth continuous lighting
• Minimal visible LED dots
• A premium appearance

Choose SMD when you want:

• More configuration options
• Higher-power options
• RGB or RGBW effects
• Greater product variety

Which Is Better for Commercial Lighting?

The answer depends on the application.

COB is often well suited for:

• Retail shelves
• Display cases
• Jewelry displays
• Hotels
• Furniture lighting
• Architectural details

SMD is often preferred for:

• General linear lighting
• High-output installations
• Color-changing projects
• Signage
• Large commercial installations

COB vs SMD Comparison

Should You Choose COB or SMD?

Choose COB LED strips if you want:

• Smooth, dot-free lighting
• A cleaner visual appearance
• Under-cabinet lighting
• Shelf lighting
• Display case lighting
• Premium architectural lighting

Choose SMD LED strips if you want:

• More brightness and density options
• RGB or RGBW lighting
• More controller options
• A wider variety of specifications
• General-purpose LED strip lighting

Neither technology is better for every project.

The right choice depends on the lighting effect, brightness, installation space, color requirements and control system you need.

Other Specifications to Compare

Before choosing a strip, also compare:

• 12V vs 24V
• Wattage per meter
• Lumens per meter
• LED density
• CRI
• Color temperature
• PCB width
• Waterproof rating
• Cutting length
• Maximum run length
• Power supply requirements

These specifications often have a greater impact on installation performance than LED technology alone.Buying Guide
